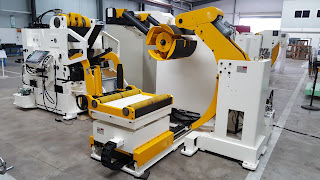

3 In 1 Auto Press Feeder Straightener And Uncoiler Specification:
Model
Item
|
GLK5-600
|
GLK5-800
|
GLK5-1000
|
GLK5-1300
| ||||
Width of Material(mm)
|
70～600
|
70～800
|
70～1000
|
70～1300
| ||||
Thickness of Material(mm)
| 0.8-9.0 | |||||||
Max.Coil Weight(kg)
|
5000
|
5000
|
7000
|
10000
| ||||
Coil I.D.(mm)
|
508
| |||||||
Coil O.D.(mm)
|
1400
| |||||||
Max.Line Speed(m/min)
|
22
| |||||||
Feed Accuracy(mm)
|
±0.15
| |||||||
Work Roller
|
Upper5/Lower4
| |||||||
Number of Feed Roller
|
1
| |||||||
Back pressure Roller
|
Provided
| |||||||
Feed level(mm)
|
1200±100
| |||||||
Power Supply
|
AC220V 50HZ/AC380V 50HZ
| |||||||
Air Supply(kg/c㎡)
|
5kg/cm²
| |||||||
Uncoil Expansion
|
Hydraulic
| |||||||
Main Motor(kw)
|
AC22
| |||||||
Uncoil Motor(kw)
|
2.2
|
2.2
|
3.7
|
7.5
| ||||
3 In 1 Auto Press Feeder Straightener And Uncoiler Features:
1. Uses 9 leveling hoops, Effective enhances the material to rectify the even precision.
2.Easy access to work rolls ,making roll cleaning much easier, The machine was designed to allow easy access to the inside structure for improved maintenance.
3.Electronic Straightening Adjustment:
The GLK features an automatic system for straightening adjustment, unlike previous models
Which adjusted straightening with manual wheels. The new electronic straightening system is easy to use and allows for faster setting up.
3 In 1 Auto Press Feeder Straightener And Uncoiler Straightened Capacity:
Width
Model
|
Thickness
| |||||||
0.8-3.2
|
4.0
|
4.5
|
5.0
|
6.0
|
7.0
|
8.0
|
9.0
| |
GLK5-600
|
600
|
450
|
331
|
253
|
200
| |||
GLK5-800
|
800
|
648
|
450
|
331
|
253
|
200
| ||
GLK5-1000
|
1000
|
800
|
648
|
450
|
331
|
253
|
200
| |
GLK5-1300
|
1300
|
1013
|
800
|
648
|
450
|
331
|
253
|
200
|
The above figures are the material having yield strength of σs=245N/mm² max ( Tensile strength of σb=392N/mm²)
3 In 1 Auto Press Feeder Straightener And Uncoiler Straightened Capacity ( For high strength tension material):
Width
Model
|
Thickness
| ||||||||
2.3
|
2.8
|
3.2
|
4.0
|
4.5
|
5.0
|
6.0
|
7.0
|
8.0
| |
GLK5-600GF
|
533
|
432
|
374
|
292
|
257
|
228
|
180
|
132
|
101
|
GLK5-800GF
|
527
|
427
|
369
|
289
|
254
|
225
|
180
|
132
|
101
|
GLK5-1000GF
|
521
|
422
|
365
|
286
|
251
|
223
|
180
|
132
|
101
|
GLK5-1300GF
|
511
|
414
|
358
|
281
|
246
|
219
|
178
|
132
|
101
|
The above figures are the material having yield strength of σs=600N/mm² max ( Tensile strength of σb=960N/mm²)
Remark : Specifications are subject to change for improvement without notice
3 In 1 Auto Press Feeder Straightener And Uncoiler Buyer Requirment:
Package
|
Wooden case
|
Delivery time
|
1-65 workdays
|
After-sale service
|
1-2 years
|
Shipping way
|
Ocean shipping
|
Payment term
|
T/T L/C Cash or other
|
If you need more 3 In 1 Auto Press Feeder Straightener And Uncoilerinformations,Please don't hesitate to contact us:
Shenzhen Hong-Er Machine Equipment Co.,LTDAddress:Room 9H, A1 Building, Zhujiang Plaza,Longxiang Road, Longgang District, Shenzhen,China.Miss VanessaE-mail: vanessa@he-machine.comMobile/whatsapp:+86 135 1016 9882Skype:zhechiqingniao3QQ:1755965744
